HESSWAY3.0V tuya zigbee gateway hub water valve on off controller WIFI for touch screen thermostat Works with Alexa Google home
Product Description
Power Supply
|
2 AA* 1.5V alkaline batteries
|
Display Accuracy
|
±0.5ºC
|
Probe sensor
|
NTC(10k)1%
|
Temperature Adjustable Range
|
5 ºC – 35 °C
|
Limit Temperature Range
|
0~70°C
|
Running program
|
Set per 1 week as a cycle
|
Max. travel
|
4.5mm
|
Thread size
|
M30*1.5
|
Max.current
|
90mA
|
Size
|
66*52*82+20mm
|
Certificate
|
CE,RoHS
|
1. Wifi Function
In the state of power off, long press menu key until WIFI icon on screen rapidly flashing to pair the thermostat to your cell phone.

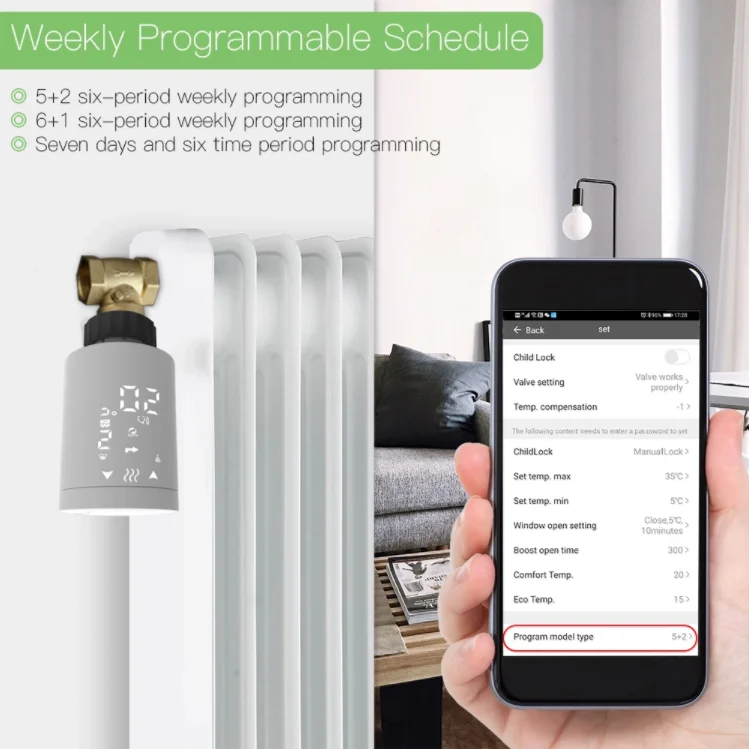

2.Weekly Programmable Function
Turn on the thermostat, then long press menu key to enter programmable mode. You can set different temperatures in different periods.
3.Holiday Mode Function
Turn on the thermostat, then long press menu key to enter programmable mode. You can set holiday mode, the thermostat will countdown from holiday beginning, after holiday ending will return to work automatic.
4.Children Lock
Turn on the thermostat, then long press menu key to lock screen, avoid children to change the temperature.
Note: zigbee radiator thermostat must be connected to the cloud through zigbee gateway.





Details Images

Applications
Package Listing(Combination optional A/B/C/D/E/F/H):
Q&A:
1.Q: Can I use my own hub to connect with the valve?
A: Please check if your radiator has a ZigBee module, it can be connected to our Tuya ZigBee wireless gateway hub, so we offer the set of the two for your to purchase.
2.Q: Can this thermostat be set to Fahrenheit display?
A: No, it can only be displayed with Celsius display.
3.Q: Can I program the schedule myself?
A: Yes, our thermostat is programmable.You are able to program your schedule freely.

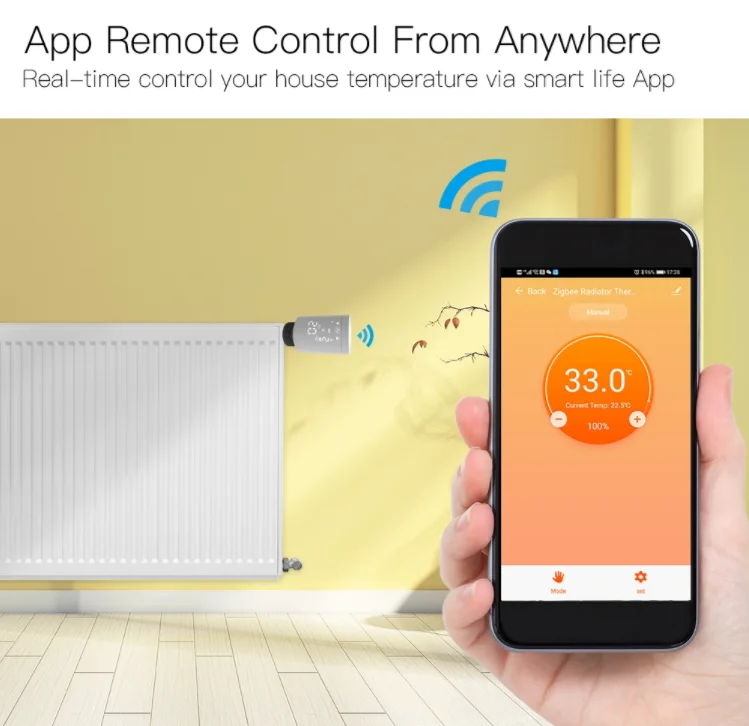

4.Q: Can I control the thermostat if I am not at home?
A: Yes, after successfully connecting it to the ZigBee wireless gateway hub, then you are able to control your device on your smart phone App.
5.Q: Does this thermostat have a screen lock to prevent guests or kids from tampering with the settings?
A: Yes, it does. It has a fully locked mode that prevents any changes or misoperation by children.
6.Q: Is the battery included?
A: No, because of delivery limitation, the product is not equipped with battery.
Smart TUYA zigbee wifi gateway






Q&A:
1. Q: Does this hub work with ZigBee 3.0 products?
A: Yes, it can not only work with tuya zigbee products,but also zigbee 3.0 ones.
2. Q: Can this hub control WiFi smart products in the same app?
A: This hub can form a whole house linkage for all the products in your same one app for the hub is connected via the wifi router.
3. Q: Does it work with Alexa echo?
A: Yes, it’s compatible with Alexa for voice control,as well as Google Home.
4. Q: What is the ZigBee protocol for this hub?
A: ZigBee and ZigBee 3.0 protocol are both fine.



Details Images


Packing&Shipping
Product Description
Power Supply
|
2 AA* 1.5V alkaline batteries
|
Display Accuracy
|
±0.5ºC
|
Probe sensor
|
NTC(10k)1%
|
Temperature Adjustable Range
|
5 ºC – 35 °C
|
Limit Temperature Range
|
0~70°C
|
Running program
|
Set per 1 week as a cycle
|
Max. travel
|
4.5mm
|
Thread size
|
M30*1.5
|
Max.current
|
90mA
|
Size
|
66*52*82+20mm
|
Certificate
|
CE,RoHS
|
1. Wifi Function
In the state of power off, long press menu key until WIFI icon on screen rapidly flashing to pair the thermostat to your cell phone.
2.Weekly Programmable Function
Turn on the thermostat, then long press menu key to enter programmable mode. You can set different temperatures in different periods.
3.Holiday Mode Function
Turn on the thermostat, then long press menu key to enter programmable mode. You can set holiday mode, the thermostat will countdown from holiday beginning, after holiday ending will return to work automatic.
4.Children Lock
Turn on the thermostat, then long press menu key to lock screen, avoid children to change the temperature.
Note: zigbee radiator thermostat must be connected to the cloud through zigbee gateway.





Details Images


Packing&Shipping
Note: zigbee radiator thermostat must be connected to the cloud through zigbee gateway.





Details Images

Applications
Package Listing:
2 weeks to reach France. As advertised. TRV and Gateway working together to trigger a water boiler via a wall thermostat from the same store (EU 24V/95-220V 5A/16A Weekly Thermostat). It can be done using the scenarios in the Tuya APP. Using the valve opening % to change the wall thermostat set temperature to close the circuit from the dry contact. The communication with the seller was fruitful and never left me with my doubts where others were not able to answer me. The seller was good listener and the only competent to answer me well. I definitely recommend this shop ! Thanks a lot !
